surgical shadowless lamp
The Surgical Shadowless Lamp is a medical lighting device specifically designed to provide strong and shadow-free lighting conditions in the surgical area. The core objective of its design is to maximize the elimination of shadows in the surgical area by means of special optical principles, thus ensuring that the surgeon can clearly observe every detail of the surgical site.
Function of the Surgical Shadowless Lamp
Surgical shadowless lights are critical tools designed to ensure optimal visibility during procedures by addressing shadows, uniform illumination, brightness and color control, heat management, adaptability, and energy efficiency.
Shadowless Effect
- Multi-Angle Light Source: Equipped with multiple precisely aligned light sources to illuminate the surgical area from various angles, creating overlapping light beams.
- Shadow Compensation: Dynamic light adjustment ensures that when one light direction is obstructed, others seamlessly fill the gap to eliminate shadows.
Uniform Illumination
- Beam Integration Technology: Light from multiple sources is blended to create a consistent and focused illumination spot, preventing uneven light intensity.
Brightness&Color Temperature Control
- Adjustable Brightness (Lux): Light intensity ranges from 40,000 Lux to 160,000 Lux, catering to varying surgical depths and complexities.
- Color Temperature Control (Kelvin): Adjustable from 3,500 K to 5,000 K for accurate tissue color reproduction and reduced eye strain.
Thermal Radiation Management
- Light-Heat Separation: Special filters and mirrors remove infrared heat while allowing visible light to pass, minimizing heat in the surgical environment.
Dynamic Adj.&Intelligent Sensing
- Flexible Mechanical Arm: Adjustable lamp heads, connected via mechanical arms, allow precise positioning to maintain focus on the surgical site.
- Intelligent Sensor Systems: Advanced models feature sensors that auto-adjust light direction in response to surgical team movements, ensuring uninterrupted illumination.
Dynamic Adj.&Intelligent Sensing
Energy Efficiency&Longevity- Durable LED Light Sources: LEDs have a lifespan exceeding 50,000 hours, significantly reducing replacement frequency and maintenance costs.
- Energy Efficiency: High luminous efficiency LEDs consume less power while maintaining superior brightness, lowering operational costs.
Classification of surgical shadowless lamps
According to the installation method
- wall-mounted shadowless lamps
- Vertical shadowless lamp
- Vertical shadowless lamp
According to the type of bulb
- LED lamps
- halogen lamps
Our Product Selection
CNME010901
Illuminance:L3C :≥140,000Lux;L4C :≥160,000Lux
Color temperature:3500±300K,4000±300K, 4500±300K,5000±300K
Color reduction index(Ra):96 ,R9 97, R13.98
Total irradiance:LED3:380W/m²;LED4:380W/m²
Size of light field:125～250mm
Service life of illuminant:50,000h
Power supply voltage:AC110-240v,50/60Hz
Lowest height of installation:2900mm
Total power consumption: 90W
Total LED bulb quantity: 187pcs
Green ENDO: YES
Dimming type: Analog dimming
CNME010904
Head diameter:500mm
Voltage:AC100-240V 50-60Hz
Colour temperature:4000-5000K
Illumination: 40000-120000Lx (adjustable)
Lamp power:70VA
Spot diameter:120-300mm(adjustable)
Colour rendering index:≥90
Lighting depth:≥1000mm
Bulb:cold light source
Brightness Level Dimming:1%-100%
Bulb life:>50000h
Bulb number:48pcs
Bulb brand: German Osram
Bulb rated power:3W

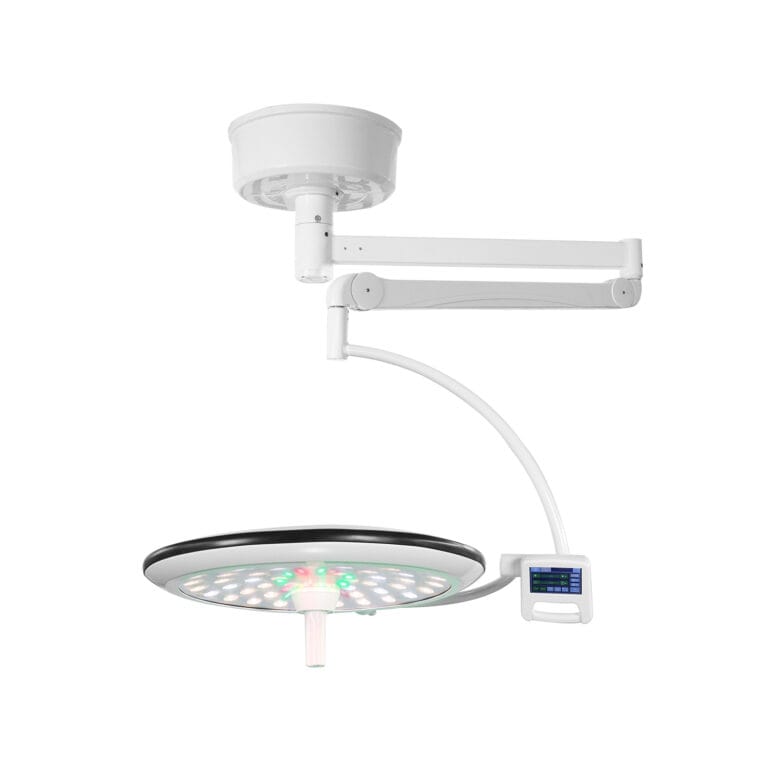

CNME010902
Head diameter:700mm/500mm
Voltage:AC100-240V 50-60Hz
Colour temperature:3500-5000K
Illumination: 40000-160000Lx (adjustable)
Spot diameter:120-300mm(adjustable)
Colour rendering index:≥95
Lighting depth:1200mm
Bulb life:>50000h
Bulb number:80/48pcs
Bulb brand: German Osram
Red & Green Mode
Sony HD camera, large capacity video recorder

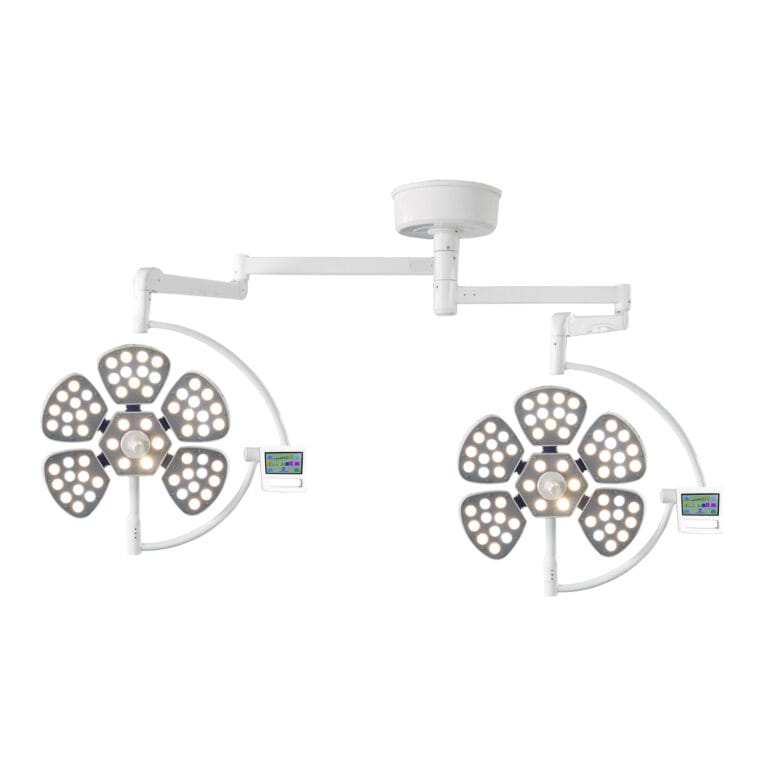

CNME010903
Voltage:AC100-240V 50-60Hz
Colour temperature:3500-5000K
Illumination: 40000-160000Lx (adjustable)
Spot diameter:120-300mm(adjustable)
Colour rendering index:≥95
Lighting depth:1200mm
Bulb life:>50000h
Bulb number:61pcs
Bulb brand: German Osram
CNME010905
Illuminance(Lux):≥100,000
Color temperature(K):4800±300
Illuminance depth (mm):≥500
Size of light field(mm):160-220
Rated power of bulb :3.2V/1W(32pc led bulb )
Power supply voltage:-～220V/50Hz
LED bulb life(hr):≥50,000
CNME010906
Illuminance :≥60,000Lux
Color temperature :3700±500K
Illuminance depth :≥600mm
Total irradince :547W/m²
Size of light field:160-220mm
Rated power of bulb:25W/24v
Import power :150VA
Power supply voltage:220V/50Hz
Bulb :cold light
Important parameters of shadowless lamps
Illumination
Illumination is the intensity of light from a surgical lamp in the center of the surgical area, usually measured in lux (lx).
Depth of illumination
Refers to the range of surgical lights that can provide high quality illumination at different heights.
Color rendering index
CRI is a measure of the ability of a light source to render the color of an object, with a standard index of 0 to 100, the higher the value, the better the light source reproduces the color of the object.
Spot Diameter
In the illumination area, the edge of the light illuminance to the center of the illuminance of 10% of the entire area included in the scope of the specific shape of the light at this time in the formation of this range.
Color temperature
▪️Collects and safely disposes of excess anesthetic gases, minimizing exposure risks for healthcare staff and maintaining a safe operating environment. ▪️Includes advanced alarms and safety mechanisms to detect issues such as low oxygen levels, excessive pressure, or machine malfunctions. ▪️Incorporates fail-safes to prevent the delivery of dangerously low oxygen concentrations, ensuring patient safety.
Maintenance of surgical lamps

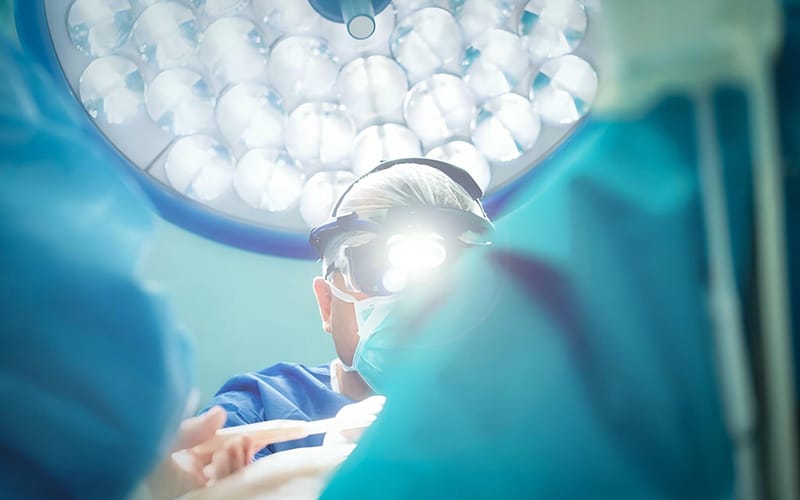

Bulb maintenance
Regularly check the working status of the bulb, which can be judged by observing whether there is an arc-like dark shadow in the working area, and if there is, the corresponding bulb should be replaced. When replacing the bulb, cut off the power supply and wait until the bulb is completely cooled down, avoid direct contact with the bulb to avoid leaving fingerprints affecting the light source.
Surface cleaning
Use a damp soft cloth or sponge with a small amount of weak alkaline solution (such as soapy water) to gently scrub the surface of the surgical lamp, avoid using chlorine-containing detergent and alcohol detergent to prevent corrosion of metal and plastic parts. When cleaning, be careful not to allow water or other liquids to enter the interior of the lamp.

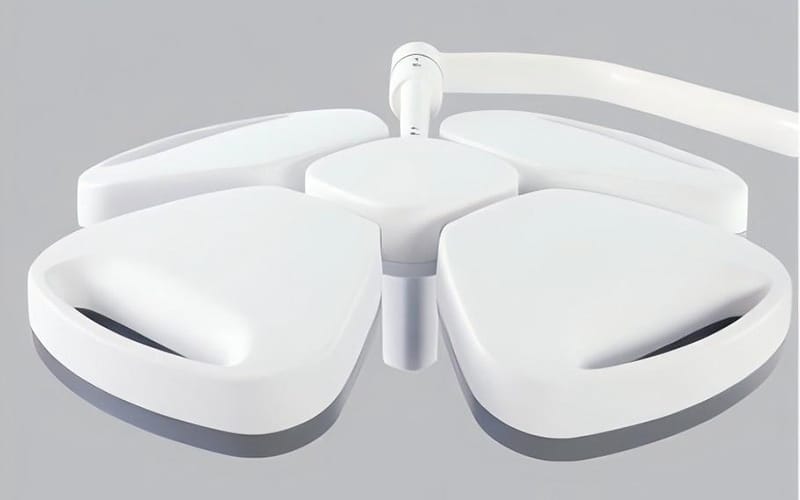

Disinfect the handle
The handle and other removable parts can be cleaned and disinfected with 75% alcohol, or use low temperature plasma disinfection and high pressure disinfection. When sterilizing, pay attention to the handle not to press heavy objects to prevent deformation.
