What Is a surgical beds
An operating bed is a specialized piece of equipment used in the operating room to support the patient's body and help the surgeon perform surgical operations. It supports the patient to maintain a specific body position during surgery through a flexible adjustment mechanism to ensure smooth operation.
Composition of surgical beds
Main types and applications of surgical beds

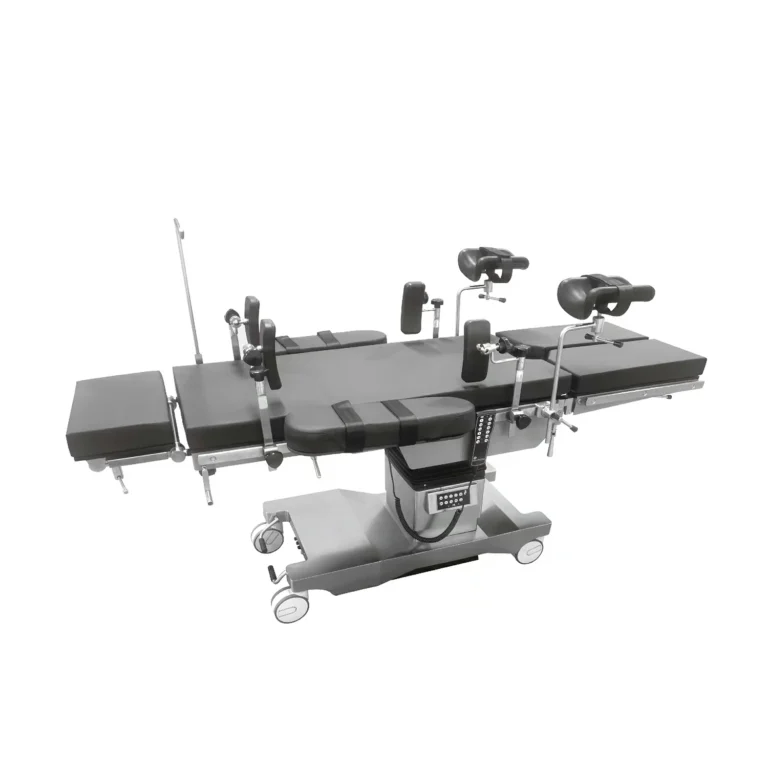

Electro-Hydraulic Surgical Beds
Combining electric and hydraulic systems, these beds offer both strong weight-bearing capacity and more precise operation.
It is suitable for high-precision surgeries in large general hospitals, especially orthopedics, neurosurgery and other departments that require high stability and adjustment precision of the bed.
Electro-Hydraulic Surgical Beds

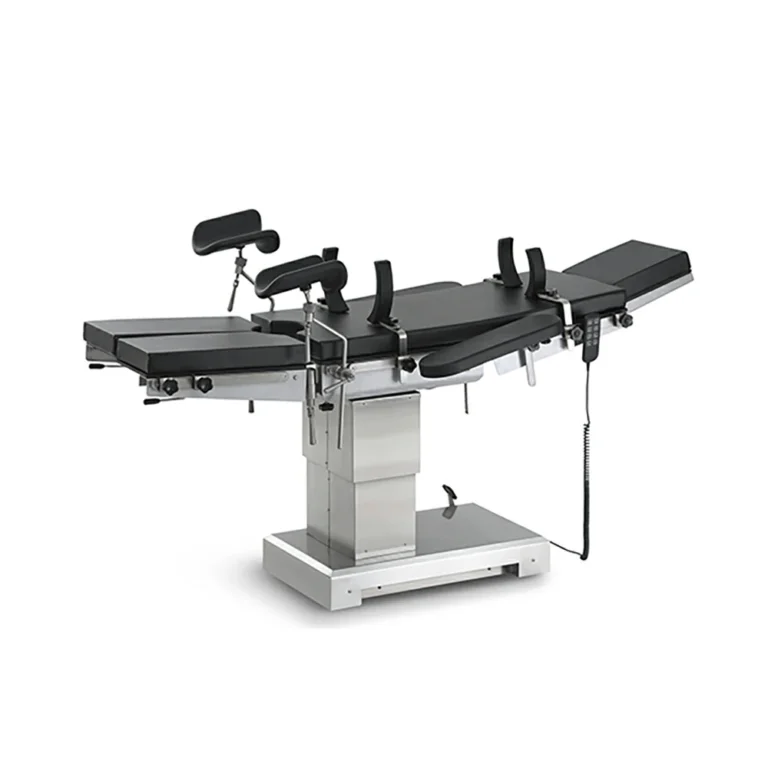

Electric Surgical BedThe use of electric control to achieve precise adjustment of bed height, tilt angle and components, widely used in modern operating rooms, suitable for complex surgeries that require rapid adjustment of body position.
Manual Hydraulic Surgical Bed
No need for electric drive, low equipment maintenance cost, suitable for operating rooms with limited equipment conditions.
Our Product Selection
CNME010801A
Type:Electro-hydraulic operation table
Length/Width/Height:2170/550/690-1100mm
Trendelenburg/ Revers Trendelenburg:≥30°/≥30°
Lateral Tilt:≥20°/≥20°
Head Section Up/Down:≥40°/≥90°
Leg Section Up/ Down/ Outside:≥15°≥90°/≥90°
Back Section Up/ Down:≥90°/≥220°
Sliding Distance:≥350mm
Kidney Bridge Lift:110mm
CNME010802A
Type:Electric Operating Table
Length/Width/Height:2020/500/550-800mm
Trendelenburg/ Revers Trendelenburg:≥25°/≥20°
Lateral Tilt:≥20°/≥20°
Head Section Up/Down:≥30°/≥90°
Leg Section Up/ Down/ Outside:≥15°≥90°/≥90°
Back Section Up/ Down:≥45°/≥20°
Sliding Distance:/
Kidney Bridge Lift:80mm
CNME010802B
Type:Electric Operating Table
Length/Width/Height:2100/550/700-1000mm
Trendelenburg/ Revers Trendelenburg:≥25°/≥25°
Lateral Tilt:≥15°/≥15°
Head Section Up/Down:≥45°/≥90°
Leg Section Up/ Down/ Outside:≥15°≥90°/≥180°
Back Section Up/ Down:≥80°/≥17°
Sliding Distance:≥350mm
Kidney Bridge Lift:120mm
CNME010803A
Type:Manual Operating Table
Length/Width/Height:2100/550/750-1000mm
Trendelenburg/ Revers Trendelenburg:≥20°/≥15°
Lateral Tilt:≥20°/≥20°
Head Section Up/Down:≥45°/≥90°
Leg Section Up/ Down/ Outside:≥15°≥90°/≥90°
Back Section Up/ Down:≥55°/≥10°
Sliding Distance:≥350mm
Kidney Bridge Lift:115mm
CNME010804A
Type:Manual Operating Table
Length/Width/Height:2000/480/720-980mm
Trendelenburg/ Revers Trendelenburg:≥30°/≥20°
Lateral Tilt:≥18°/≥18°
Head Section Up/Down:≥45°/≥90°
Leg Section Up/ Down/ Outside:≥15°≥90°/≥90°
Back Section Up/ Down:≥75°/≥18°
Sliding Distance:/
Kidney Bridge Lift:115mm
CNME010804C
Type:Manual Operating Table
Length/Width/Height:2000/480/750-850mm
Trendelenburg/ Revers Trendelenburg:/
Lateral Tilt:/
Head Section Up/Down:≥45°/≥90°
Leg Section Up/ Down/ Outside:≥15°≥90°/≥90°
Back Section Up/ Down:≥45°/≥20°
Sliding Distance:/
Kidney Bridge Lift:100mm
Specialized surgical beds
Delivery beds
Orthopedic Surgical Beds
Neurosurgical beds

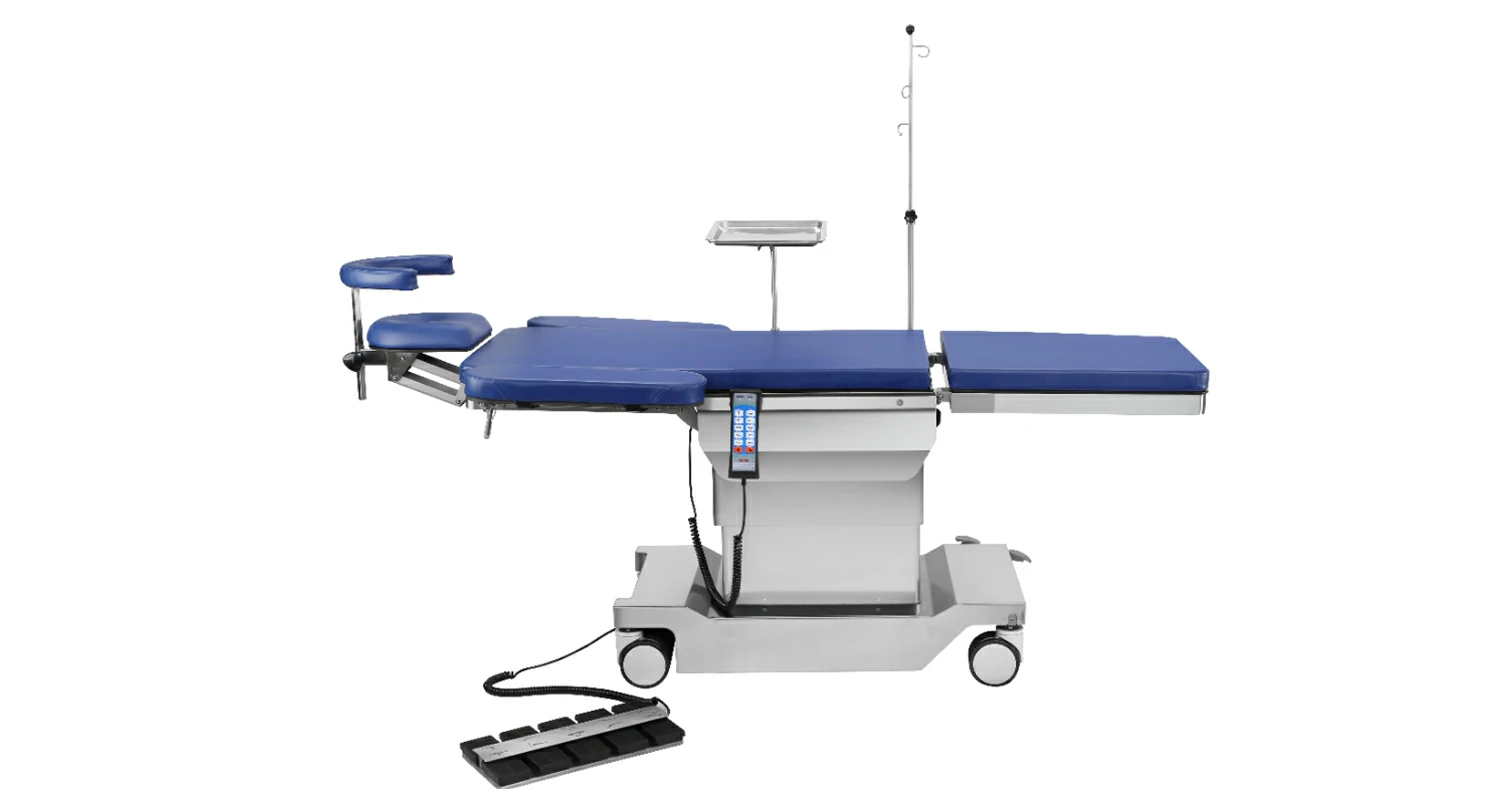

Ophthalmic surgical beds
Common surgical positions and application scenarios
surgical position |
Applicable types of surgery |
Features and Requirements |
|---|---|---|
Prone Position | Spine, cervical and back related surgeries | - The patient's face is down and the chest and abdomen are appropriately suspended to minimize compression. |
Supine Position | General surgery, cardiothoracic surgery, and other routine procedures | - Patient lying flat with arms at sides |
Tilt-Side Position | Gallbladder, kidney and anal surgery | - Patient lying on their side with their side against the brace |
Perineum | Obstetrics and gynecology surgery (e.g., childbirth), urology surgery | - Patient lies flat, legs elevated and secured in leg braces |
Seating Position | Neurosurgery, nasopharyngeal and skull base surgery | - The patient's upper body is upright or semi-upright and the legs hang down naturally |
Core performance indicators of surgical beds

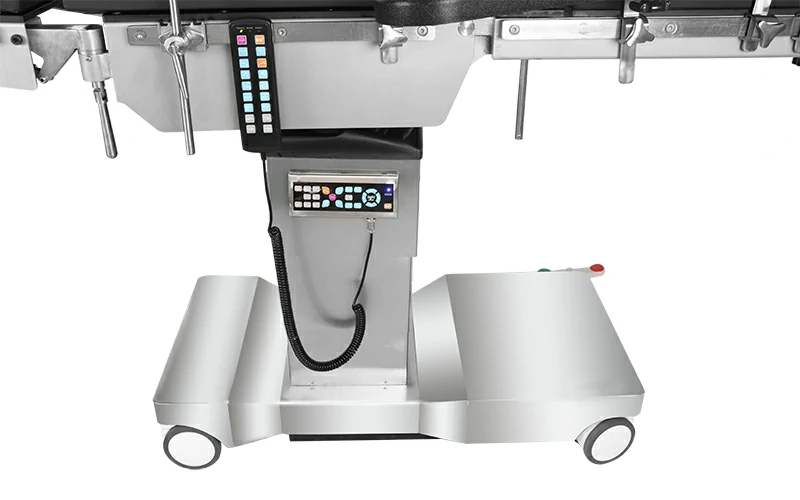

Structural stability
The surgical bed needs to have good load-bearing capacity to keep the equipment stable and avoid movement or vibration affecting the quality and safety of surgery.
Adjustability
Flexible adjustment of height, head, back, leg and other angles to meet the needs of various surgical positions and provide ideal operating conditions for surgery.
Compatibility
Compatibility with C-arm X-ray machines, robotic-assisted surgical equipment, etc. is required to ensure smooth image transmission and equipment operation.
Material Durability
Use of waterproof, corrosion-resistant, antimicrobial materials for easy cleaning and disinfection ensures durability and compliance with infection control standards.

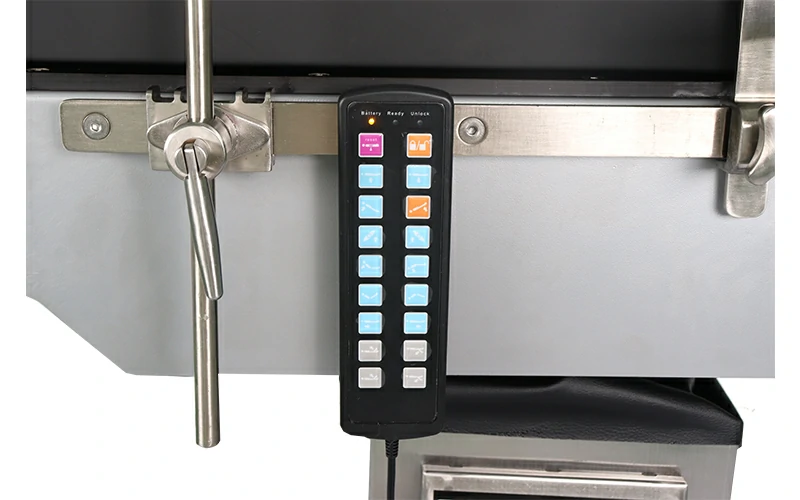

Convenience of operation
Electric surgical beds should support one-key memory function, and manual surgical beds need to be designed with precise adjustment mechanism to improve operation efficiency and reliability.
