Obstetrics And Gynecology Beds
The Obstetrics & Gynecology bed is specifically designed to support a range of medical scenarios such as natural childbirth, cesarean section, gynecological surgeries, examinations, and postpartum care. Through flexible adjustment functions and humanized design, it enhances the comfort of mothers and patients.
Classification of beds for obstetrics and gynecology

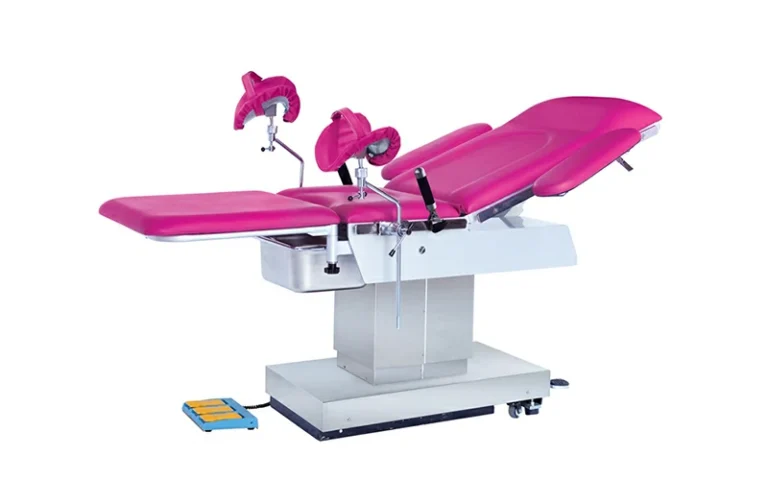

Electrical obstetric surgical beds
Manual integrated obstetrical surgical beds
Gynecological examination beds

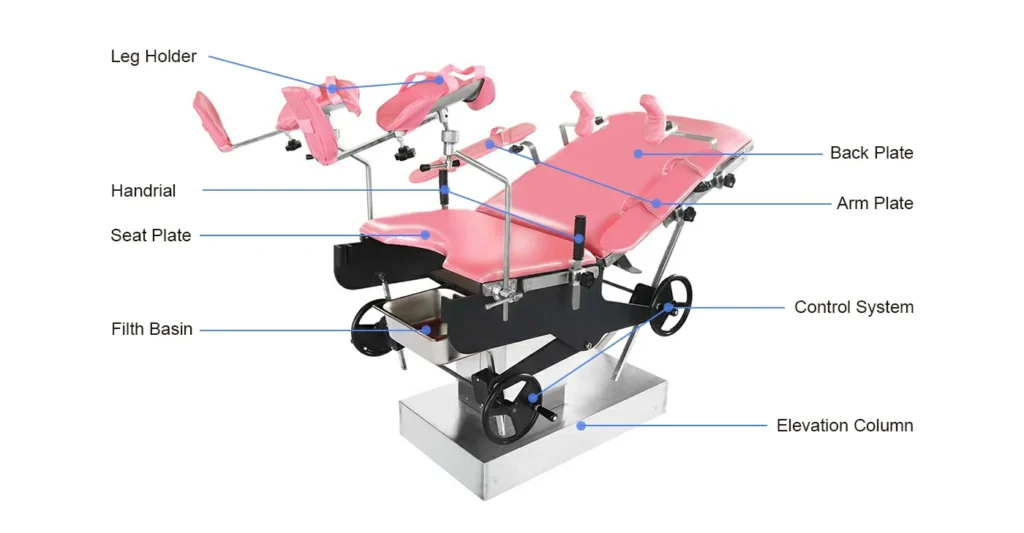

Composition of special beds for obstetrics and gynecology
Differences between gynecologic and general operating tables
Both tables are designed to provide a stable and adjustable platform for surgical procedures, but the gynecological table is designed specifically for gynecological procedures with special features such as stirrups and enhanced accessibility to the pelvic area. The general operating table, on the other hand, is designed for a wide range of surgical procedures with versatility and a variety of adjustable positions and attachments.
| Gynecological operating table | General operating table | |
|---|---|---|
| Design and structure | Specifically designed for obstetric and gynecological procedures Equipped with stirrups or leg rests that can be adjusted to different positions. There are usually incisions or removable sections for better access to the perineal area. | Designed for a variety of procedures in different specialties Adjustable for different positions such as flat, supine, reverse supine, sideways and forward/backward tilt. Includes a variety of attachments that can be added or removed depending on the type of surgery. |
| Functionality | Provides specific positioning aids to improve accessibility to the lower abdomen and pelvic region. Three-part bed design (back, seat, leg) Greater comfort and stability | Suitable for a variety of surgical procedures including orthopedic, cardiac, neurosurgery and general abdominal surgery. The bed has a five-part design (headboard, backboard, lumbar, seat and leg boards). Greater range of load-bearing capacity |
| Accessories | Includes gynecological stirrups, leg holders, and sometimes other accessories such as arm supports and trays for gynecology-specific surgical instruments. | Features modular attachments for specific procedures such as headrests for neurosurgery, footrests for podiatry or arm boards for general surgery. Compatible with a wide range of surgical instruments and assistive devices. |
| Size and Mobility | Size is usually more compact for specialized gynecological or obstetric operating rooms. Easily positioned to meet the specific needs of gynecological surgery. | Often larger in size to accommodate a variety of surgical procedures. Often equipped with wheels and braking systems for ease of movement and positioning in the operating room. |
Our Product Selection

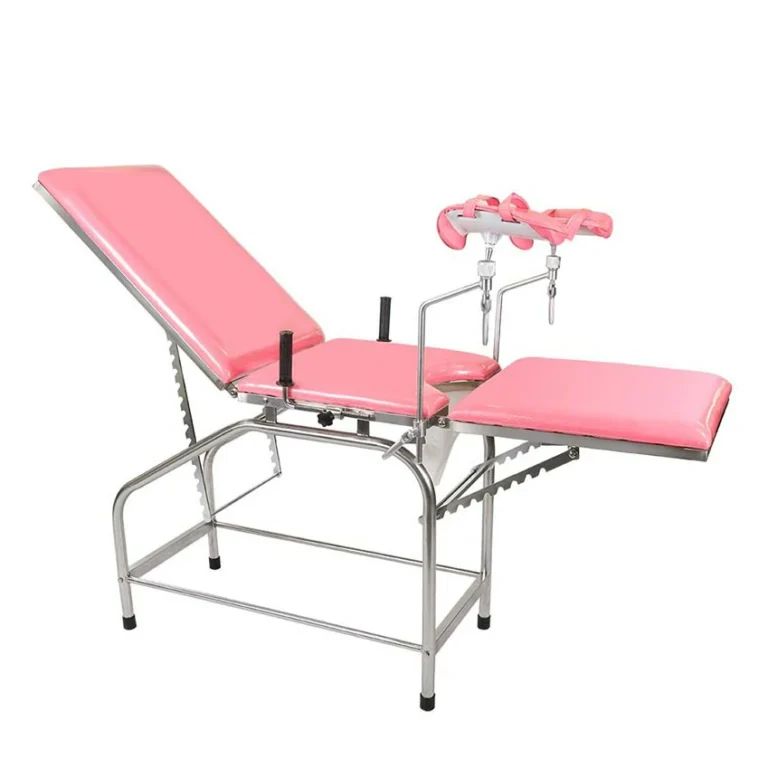

CNME010806A
Ordinary Obstetric Bed
Length/Width/Height:1900mm/600mm
/750mm
Back Section Up/ Down: ≥45°/≥10°
Seat Section Up/ Down: ≥25°/≥8°
Leg Section Up/ Down:≥25°/≥25°
The bed top and main structure are all made of stainless steel 304
Simple birthing bed without height adjustment, detachable leg stool, split design, universal for obstetric and gynecological surgery

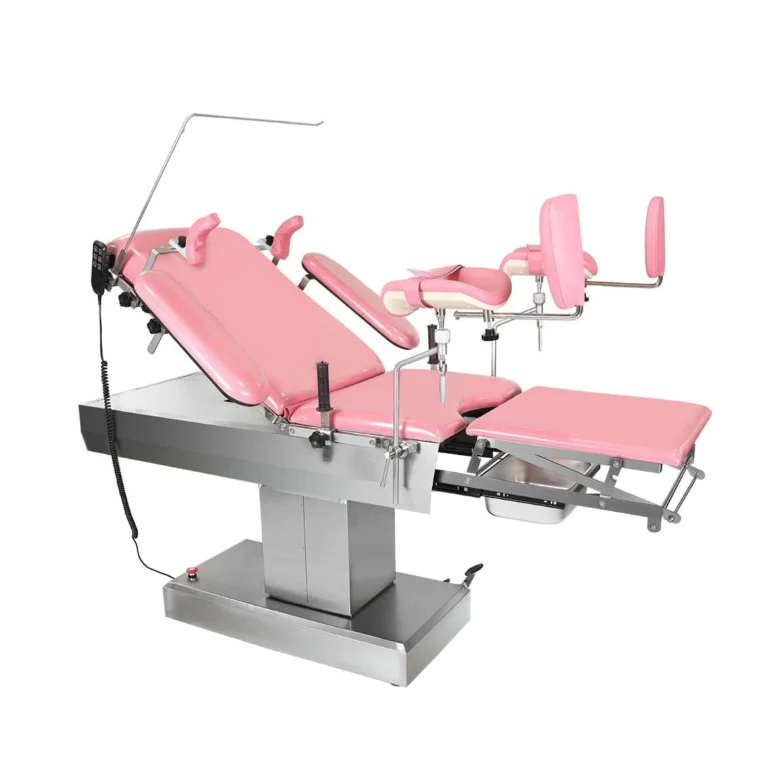

CNME010806B
Electric Obstetric Bed
Length/Width:1900mm/600mm
Height:600-900mm
Trendelenburg/ Revers Trendelenburg: ≥20°/≥20°
Back Section Up/ Down:≥70°/≥10°
Leg Section Opened:≥90°
Load Capacity:250kg
All the cover,able top, basin are all made of stainless steel 304; The mattress is seamless foaming pad
With foot controller
Mainly for obstetrics delivery surgery, CE, ISO certified

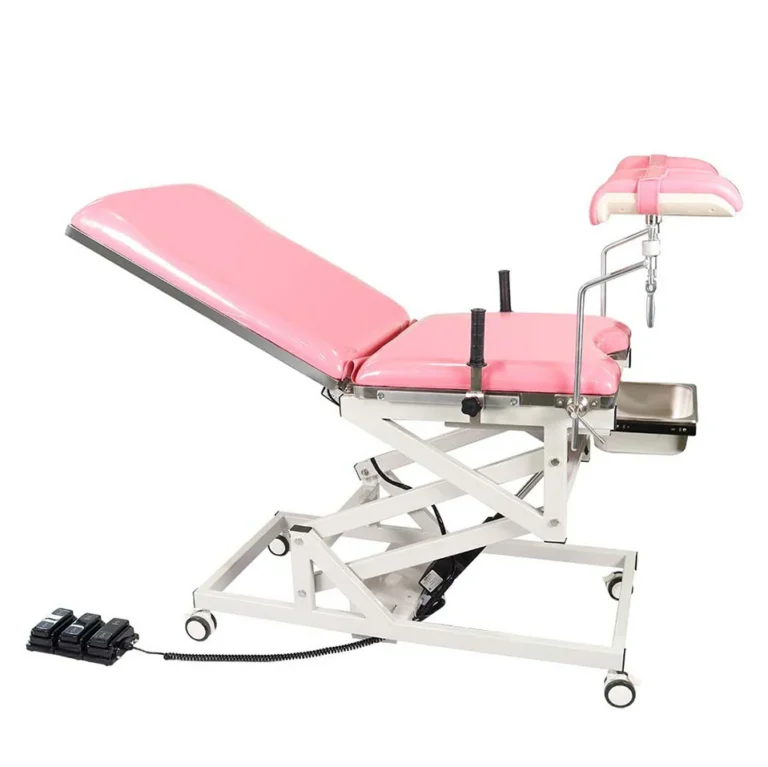

CNME010806C
Electric Obstetric Bed
Length/Width:1450mm/600mm
Height:580-1000mm
Back Section Up/ Down:≥70°/≥20°
Seat Section Up:≥40°
Load Capacity:250kg
With Foot pedal controller
Simple model of electric obstetrics bed, more suitable for gynecological examination
CNME010807A
Hydraulic Obstetric Bed
Length/Width:2000mm/600mm
Height:620mm-860mm
Trendelenburg/ Revers Trendelenburg:≥20°/≥20°
Back Section Up/ Down:≥65°/≥10°
Load Capacity:250kg
The column and base cover, basin are all made of stainless steel 304
Manual hydraulic model delivery bed, mainly for obstetric delivery surgery, CE, ISO certification
CNME010808A
Ordinary Obstetric Bed
Length/Width/Height:1900mm/600mm/750mm
Back Section Up/ Down:≥45°/≥10°
Seat Section Up/ Down: ≥25°/≥8°
Leg Section Up/ Down:≥25°/≥25°
The bed top and main structure are all made of stainless steel 304
Simple birthing bed without height adjustment, detachable leg stool, split design, universal for obstetric and gynecological surgery
CNME010808B
Gynecology Examination Bed
Length/Width/Height:1900mm/500mm/750mm
Back Section Up/ Down:≥60°/≥10°
Leg Section Down:≥75°
Main structure is made of stainless steel 304
Gynecological examination beds, mainly for gynecological examination procedures
The role of specialized beds for obstetrics and gynecology
Support for the birthing process
- Provide a variety of body position options
- Relieving the stress of labor and delivery
- Ensuring the safety of the delivery process
Improving medical efficiency
- Convenient operating system
- Reduced need for equipment replacement
- Adaptation to emergency scenarios
and diagnosis
- Optimize physician operations
- Improve patient comfort
Support for obstetric and gynecological surgery
- Precise postural adjustment
- Multi-functional integrated design
Support for professional and scientifical post-natal care
- Post-natal recovery support
- Mother-child interaction support
