What is an Infusion & Syringe Pump?
Infusion & syringe pump is a medical device that precisely controls the infusion rate and total volume of fluids through programmed settings, ensuring that medications, nutritional solutions, and other fluids are delivered continuously and safely into the patient’s body.
Based on the driving mechanism, infusion pumps are classified into micro-pumps (for high-precision, small-volume infusions) and volumetric pumps (for large-volume infusions). They are widely used in ICUs, operating rooms, chemotherapy suites, and other settings, supporting applications such as analgesia, antibiotic injections, insulin infusions, and parenteral nutrition therapy. Their key advantage lies in reducing the risk of human error, and they are equipped with alarms for occlusions, air bubbles, power anomalies, and more, thereby enhancing treatment safety.
Why Use an Infusion & Syringe Pump?
The Role of Infusion & Syringe Pumps in Healthcare
- ICU: Provides continuous and precise infusion of vasopressors, sedatives, etc., to stabilize the vital signs of critically ill patients.
- Operating Room: Adjusts the doses of anesthetics and vasoactive drugs to precisely meet intraoperative requirements.
- Neonatology/Pediatrics: Addresses the need for very small doses in low-weight infants or children, avoiding the risk of manual dosing errors.
- Emergency/Trauma: Quickly adjusts infusion rates to manage emergencies such as massive bleeding or shock.
- Oncology/Chronic Conditions: Provides continuous chemotherapy infusions or long-term insulin pump control to maintain stable blood drug concentrations.
Compared with manual intravenous therapy, infusion & syringe pumps offer several advantages:
- Patient Experience: The uniform, small-volume infusion minimizes vascular irritation and reduces the need for frequent fluid changes or punctures.
- Infection Control: Pre-programmed settings reduce personnel contact and lower the risk of tubing contamination.
- Efficiency Improvement: Reduces the need for constant manual monitoring, optimizing the allocation of medical resources.
- Cost-effectiveness: Prevents medication wastage and reduces additional treatment costs resulting from complications.
- Operational Convenience: The built-in alarm system frees up manpower and ensures that medication administration is carried out on time and in precise quantities.
How Does the Infusion & Syringe Connect to the Patient?
The connection between an infusion & syringe pump and the patient is achieved through standardized components working in unison. The core components include the pump body, infusion tubing, and the vascular access device.
Pump body serves as the central driving unit, equipped with precise mechanical or electromagnetic modules that control the drug delivery rate through programmed settings.
Infusion tubing is made of medical-grade flexible tubing. One end connects to the medication reservoir (such as an infusion bag or syringe), and the other end connects to the patient’s vascular access device via a sterile connector. The tubing usually contains a drip chamber, a filter membrane, and a one-way (anti-reflux) valve to ensure the medication remains pure and flows in one direction only.
Vascular access device may include an indwelling intravenous catheter, a PICC line, or an infusion port, selected based on the treatment duration and the characteristics of the medication. In practice, the nurse inserts the needle or catheter percutaneously into the patient’s vein, confirms blood return, secures it, and then tightly connects it to the tubing via a Luer lock connector.
Fixation devices such as medical tape or elastic bandages are used to secure the needle and tubing, preventing dislodgement due to patient movement. Some Infusion & Syringe pumps are equipped with pressure sensor patches that monitor the puncture site in real time for any abnormal swelling.
The entire system must be assembled in a sterile environment, ensuring that the path from the medication outlet to the blood vessel is completely sealed, thereby minimizing infection risks. Once set up, the pump continuously administers the medication according to preset parameters while using photoelectric or ultrasonic sensors to detect abnormalities such as air bubbles or tubing occlusions. These sensors trigger audible and visual alarms and can immediately interrupt the infusion to ensure treatment safety.
Types of Infusion & Syringe Pumps and Their Applications
1.Infusion Pump
What is an Infusion Pump – How It Work?
An infusion pump works by using a motor-driven roller that periodically compresses the infusion tubing, thereby regulating the flow rate. It is suitable for intravenous administration of medications, nutritional solutions, or blood products.
Typical Applications: Mainly used in critical care or post-operative recovery settings that require long-term, precise control of medication dosing, accommodating both large-volume fluid replacement and precise administration of high-risk medications.
Supporting Consumables
- Infusion Set: Medical tubing that includes a precision filter membrane and a drip rate regulator, which must be compatible with the pump body.
- Infusion Bag/Bottle: A flexible bag or glass bottle that stores the medication, delivering it to the tubing either by gravity or pump pressure.
Types of Infusion Pumps
They are classified by appearance into horizontal pumps and vertical pumps.

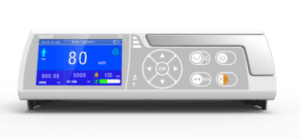

- Horizontal Pump (Horizontal Infusion Pump)
Features a flat design, allowing multiple units to be stacked horizontally.
Applicable Scenarios: Suitable for settings such as ICUs and operating rooms that require high flow and multi-channel infusions.

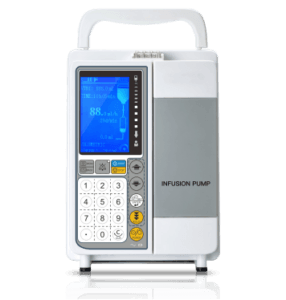

- Vertical Pump (Vertical Infusion Pump)
Primarily designed with a vertical structure, occupying more space, and typically used as a single standalone unit.
Applicable Scenarios: Used in general wards and emergency departments where single-channel infusion is required.
Advantages and Disadvantages of Infusion Pumps
Advantages:
- The combination of an intelligent mechanical structure with an electronic sensing system ensures that every drop of medication is delivered into the bloodstream at the preset rate, avoiding errors caused by manual estimation.
- It can continuously infuse antibiotics at a steady rate around the clock or deliver chemotherapy drugs in pulses at set intervals, accommodating a wide range of treatment needs.
- Healthcare providers can pre-program complex medication regimens (such as stepped increases or decreases in flow rate), which the device executes automatically, thereby reducing the monitoring workload.
- Whether it is delivering ultra-small volumes required by neonates (with flow rates as low as a few drops per hour) or rapidly providing large volumes during resuscitation (for patients experiencing blood loss or dehydration), the pump can accurately handle the full range of flow rates.
- It is equipped with multiple monitoring systems that immediately trigger an alarm and pause the infusion if there is a tubing occlusion, insufficient medication volume, or deviation in flow rate, directly preventing risk escalation.
Disadvantages:
- Cost Barrier: The purchase price and the cost of specialized consumables are significantly higher than those of simple syringe pumps, placing higher demands on the healthcare budget.
- Operational Complexity: Operators must be well-versed in setting parameters, handling alarms, and performing routine maintenance. Inexperienced users may inadvertently press the wrong buttons or misinterpret indicator messages, leading to operational errors.
- In special situations (such as when using glass infusion bottles or high-viscosity medications), unstable flow rates or frequent device alarms may occur, necessitating the purchase of additional matching tubing to meet the requirements.
2.Syringe Pump
How Does a Syringe Pump Work?
A syringe pump works by using a mechanical plunger to precisely push the syringe plunger, delivering the medication at a constant speed into the patient’s body. The driving mechanism controls the speed of the push, and electronic sensors continuously detect the syringe size and the distance moved by the plunger, ensuring that any dosing errors are minimized.
Typical Applications: Mainly used in critical care settings where precise micro-dosing is required, for the injection of high-risk medications, and for special patient groups.
Supporting Consumables
- Syringe: A sterile syringe that matches the specifications of the pump body, with common sizes ranging from 5 mL to 50 mL.
- IV Extension Tubing: A specialized tubing that connects the syringe to the indwelling intravenous needle, some of which include an anti-reflux valve to prevent medication contamination.
Types of Syringe Pumps
They are classified by the number of channels into single-channel and dual-channel syringe pumps.

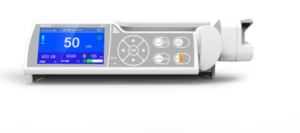

- Single-Channel Syringe Pump
Supports the infusion of only one syringe, occupies minimal space, and is suitable for treatment scenarios involving a single medication (such as patient-controlled analgesia pumps).

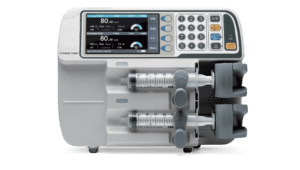

- Dual-Channel Syringe Pump
Equipped with two independent channels that can simultaneously infuse two medications, but it is crucial to strictly ensure the compatibility of the drugs (for example, when using vasoconstrictors in combination with sedatives).
Advantages and Limitations of Syringe Pumps
Main Advantages:
- Provides micro-level control capable of delivering high-risk medications such as vasoactive drugs and insulin in a stable manner, preventing adverse reactions caused by dosing fluctuations.
- The compact and lightweight design can be mounted on an infusion stand, bed, or emergency transport equipment, making it adaptable to operating rooms, emergency ambulances, and even home-based chemotherapy settings.
- Its light weight allows it to be held with one hand and easily transported at the bedside with the patient, particularly suitable for neonatal care and pre-hospital emergency situations.
- It intelligently identifies the syringe specifications and automatically calibrates the infusion speed; if a tubing occlusion occurs or the injection is complete, it triggers audible and visual alarms to forcefully pause the infusion, thereby preventing the risk of an air injection.
Limitations:
- Limited Medication Volume: The amount that can be loaded at one time is dependent on the syringe capacity (usually ≤50 mL). For large-volume infusions, frequent replacement of consumables is required, increasing operational workload and the likelihood of contamination.
- It cannot directly connect multiple sets of medications, and prolonged continuous infusions (such as 24-hour nutritional support) require multiple manual interventions, which may affect treatment continuity.
- The operational process involves multiple steps in parameter setting, which can easily lead to configuration errors. Moreover, handling alarms requires judgment based on the type of malfunction, demanding a higher level of operator experience.
3.Patient-Controlled Analgesia (PCA) Pump
What is a Patient-Controlled Analgesia (PCA) Pump?
A PCA pump is a medical device that allows patients to self-administer pain medication within a doctor-prescribed safe dosage range by pressing a manual button according to their pain level. Its core design enables patients to participate in pain management decisions, balancing immediate pain relief needs with medication safety.
Typical Applications: It is used for controlling acute post-operative pain (such as after major orthopedic surgery), managing pain in advanced cancer, and providing analgesia during labor. It is especially suitable for patients who are alert, able to understand the operational instructions, and capable of self-administration.
Advantages and Disadvantages of PCA Pumps
Advantages:
- Patients can flexibly press the button to administer additional pain medication without having to wait for healthcare providers, which significantly alleviates feelings of helplessness in situations such as post-operative pain or cancer breakthrough pain, thereby enhancing confidence in the treatment.
- By combining a continuous background infusion with the option for patient-controlled bolus doses, it maintains a baseline level of analgesia while rapidly responding to sudden severe pain, thus reducing fluctuations in pain scores.
- It reduces the workload on nurses related to frequent drug preparation and injections, allowing them to focus more on monitoring patients’ vital signs or managing complex symptoms, thereby improving overall care efficiency.
- Physicians can set the dose per administration, the lockout interval (time between button presses), and the 24-hour total dosage limit based on the patient’s weight, age, and medical history, thereby avoiding a one-size-fits-all medication approach.
- Once pain is promptly relieved, patients can begin deep breathing exercises, mobilize earlier, and engage in rehabilitation training sooner, reducing the risk of complications such as thrombosis and atelectasis.
Disadvantages:
- It requires regular evaluation of the analgesic effect by healthcare providers, as well as verification of device parameters to prevent potential drug accumulation and toxicity caused by patients repeatedly pressing the button due to anxiety or cognitive impairments.
- The cost of the device and its consumables is high: the specialized medication storage module, safety lock design, and electronic control system increase both procurement and maintenance costs, which may make it difficult for some primary healthcare institutions to adopt due to budget constraints.
- There is a risk of accidental activation: despite preset dose limits and lockout intervals, there is still the possibility of unintended administration if patients or family members mistake the button for another device’s switch or if children press it out of curiosity. Therefore, thorough user education is necessary.
4.Enteral Feeding Pump
An enteral feeding pump is a medical device specifically designed for patients who are unable to swallow independently or have impaired digestive function. It delivers nutritional fluids at a steady and controlled rate into the gastrointestinal tract via a nasogastric tube, gastrostomy tube, or similar route. Its core function is to reduce feeding risks and replace the traditional, less controlled gravity drip method.
Target Population
Primarily used for patients who require long-term nutritional support or have fragile gastrointestinal function, such as:
- Swallowing disorders caused by throat tumors or stroke
- Patients in the recovery phase of gastrointestinal function in intensive care units
- Malabsorption conditions such as Crohn’s disease or short bowel syndrome
- Patients in a coma or with neurological injuries that prevent independent feeding
Supporting Consumables
- Disposable enteral feeding sets
Sterile tubing kits that include an anti-reflux valve and spiral clip slots, which must be compatible with the pump model to prevent flow rate discrepancies.
- Nutritional fluid containers
Available in single-unit (pre-mixed nutritional formulas) or dual-unit formats (powder and liquid that need to be mixed), with some including light-protective bags to accommodate special components (such as fish oil emulsions).
- Specialized nasogastric or gastrostomy tubes
Made of silicone, with built-in radiopaque lines to facilitate X-ray localization, and connectors that must securely match the feeding set.
Clinical Value
By controlling the infusion rate and temperature (with some models supporting heating), the pump reduces complications such as gastrointestinal spasms and diarrhea, and improves the efficiency of nutrient absorption. The intelligent alarm system reduces the need for frequent manual monitoring by nursing staff, which is especially beneficial for patients receiving enteral nutrition at home.
Conclusion
Infusion & syringe pumps enhance treatment precision through intelligent drug delivery control and are divided into four core types: Infusion pumps cater to large-volume fluid replacement and chemotherapy needs; syringe pumps focus on precise control of high-risk, micro-dosed medications; PCA pumps enable patient-controlled analgesia; and enteral feeding pumps ensure steady feeding for patients with fragile gastrointestinal tracts. Each type of device relies on compatible consumables and sensor technology to monitor for abnormalities in real time and prevent risks. Clinically, by flexibly selecting the appropriate device based on the treatment setting, patient tolerance, and medication characteristics, complications can be reduced and healthcare efficiency optimized, serving the full spectrum of care from emergency response to chronic disease management.
