Patient monitors are a type of patient monitoring system. In the medical field, patient monitoring devices serve as an important tool in modern medicine, relying on sensors, data analysis, and intelligent early warning technology to capture key vital signs such as heart rate, blood pressure, and blood oxygen in real time.
What is a Patient Monitor?
A patient monitor is a medical device used for real-time monitoring of a patient’s key vital signs and health status. Its main functions include tracking the patient’s response to treatment, supporting continuous monitoring in long-term care, and assisting in the assessment of changes in the condition by obtaining key data in a timely manner.
Patient monitors are one of the core devices in hospitals, clinics, and other medical institutions. They provide a comprehensive overview of a patient’s health through continuous, round-the-clock dynamic monitoring. In emergency situations, they can quickly display vital sign data to gain precious time for rescue. At the same time, they help healthcare professionals evaluate postoperative recovery progress and identify potential complications early, thereby reducing treatment risks and enhancing medical safety.
What Are the Uses of a Patient Monitor?
The core purpose of a patient monitor is to dynamically capture the key signals of the patient’s body, providing real-time data support for clinical decision-making. Its specific uses are reflected in the following:
- Continuously tracking basic physiological indicators such as heart rate, blood pressure, blood oxygen saturation, and respiratory rate. This is applicable in scenarios such as emergency care, intensive care, surgery, and postoperative recovery, dynamically reflecting the patient’s condition.
- Quantitatively assessing the impact of medical interventions such as medication and surgical procedures on the patient through trend analysis of the data, thereby assisting in adjusting treatment plans.
- Automatically triggering an alarm mechanism based on preset safety thresholds, prompting healthcare personnel to promptly address potential risks such as respiratory depression, arrhythmia, or hypotension.
- Supporting the daily monitoring and data recording of chronic disease patients, while tracking changes in physiological indicators during the recovery phase to help develop personalized care plans.
- Integrating in-hospital monitoring systems with remote monitoring platforms to achieve cross-regional data interconnection among emergency departments, ICUs, general wards, and home environments, thereby enhancing the efficiency of medical collaboration.
Its functions span the entire cycle of diagnosis and treatment—from emergency rescue of critically ill patients to the management of chronic diseases—reducing medical risks through precise data monitoring and optimizing resource allocation.
How to Read a Hospital Monitor?

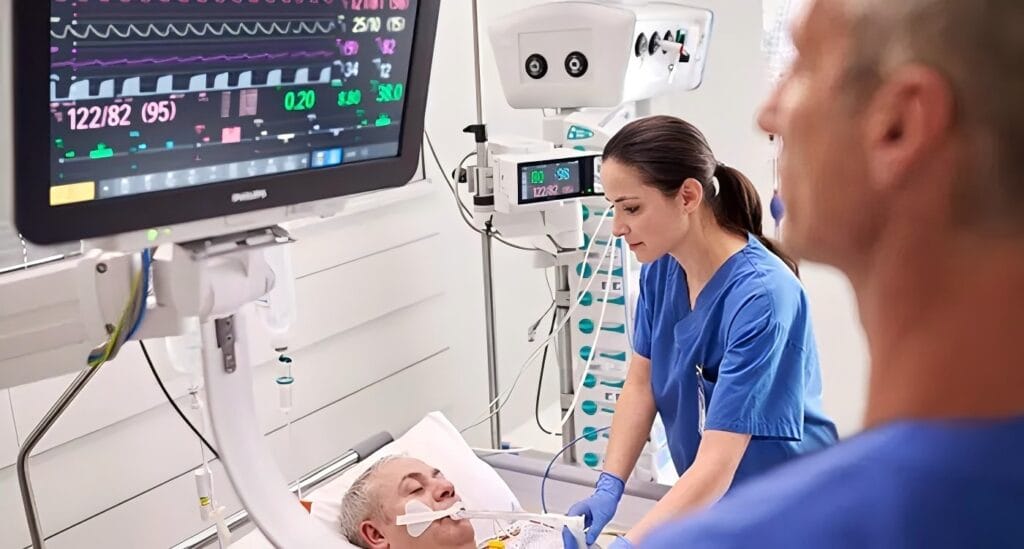

Patient monitors connect to the patient’s body through sensors, continuously capturing key vital signs and displaying the data in real time on the medical monitor screen. These numbers are like the code of human health, providing healthcare professionals with the core basis for rescue and treatment.
However, when faced with the fluctuating figures on the screen, are you clear about what the different numbers on a hospital monitor? For example, what does RR mean in hospital monitor? The following explanations help you quickly understand the key information on the monitor:
Heart Rate (HR)
The number next to “HR” or “❤” on the screen represents the number of heartbeats per minute.
– A normal resting heart rate for adults is 60–100 beats per minute.
– If the value is consistently below 60 (except for athletes), it may indicate bradycardia; if above 100, it could signal fever, dehydration, or heart disease.
Blood Pressure (NIBP)
The display format is usually systolic (upper number) / diastolic (lower number) (e.g., 120/80 mmHg).
– Normal ranges:
Systolic: 90–140 mmHg
Diastolic: 60–90 mmHg
Mean arterial pressure: 70–105 mmHg
– A reading below 90/60 mmHg may indicate shock or hypovolemia, while a reading above 140/90 mmHg requires evaluation for a hypertensive crisis.
Temperature (TEMP)
Measured through a skin or internal probe, the probe’s temperature data corresponds to “TEMP” on the monitor.
– Normal range: 36–37.5℃
– A sustained temperature >38℃ indicates fever, while <35℃ warrants caution for hypothermia.
Blood Oxygen Saturation (SpO2)
Displayed as a percentage (e.g., 98%), it reflects the blood’s oxygen-carrying capacity.
– Normal range: Adults ≥95%
– If below 92%, the patient may show signs of cyanosis (bluish lips) and difficulty breathing, requiring immediate oxygen supplementation and investigation of respiratory issues.
Respiratory Rate (RR)
Generally calculated from chest movements or respiratory waveforms.
– Normal range: Adult resting respiratory rate is 12–20 breaths per minute.
– A rate exceeding 25 may indicate respiratory distress, while a rate below 8 warrants caution for respiratory depression.
Key Points
- When values are abnormal, first check if the sensor has come loose or is not making proper contact;
- Combine the observation of the patient’s complexion and level of consciousness for a comprehensive judgment—do not rely solely on a single value;
- Continuous alarms or critical values should prompt immediate notification of healthcare personnel.
Components of a Patient Monitor
Sensors:
Utilize electrodes, pulse oximeter probes, blood pressure cuffs, and other devices that contact the patient’s skin to continuously collect key physiological signals such as heart rate, blood oxygen, and blood pressure.
Sensors are used for continuous monitoring of the vital signs of critically ill patients, for example during surgery, in the ICU, or in emergency rescue scenarios, ensuring that abnormal data is captured immediately.
User Access Portal:
Includes a display screen and physical buttons/touch panels, providing a visual data interface that allows healthcare personnel to view waveforms, adjust alarm thresholds, and switch monitoring modes.
This complex interconnected portal enables medical staff to quickly read real-time data during rounds or emergencies and customize device parameters according to the patient’s condition.
Software:
Embedded with data analysis algorithms, it integrates multi-parameter information, triggers abnormal alarms, and connects with hospital information systems to store historical records.
It assists in clinical diagnosis (such as detecting arrhythmias), generates electronic medical reports, and supports the sharing of dynamic patient data during remote consultations.
What Are the Different Types of Patient Monitors?
Vital Signs Monitor
This type of device focuses on monitoring basic indicators such as heart rate, blood pressure, temperature, and respiratory rate, commonly found in general wards or used in home care.
For example, hypertensive patients at home only need to wear a cuff and chest patch, with data automatically recorded for doctors to analyze during follow-up visits. Nursing homes also often use such devices to reduce the need for frequent manual measurements by caregivers.
Multi-Parameter Monitor

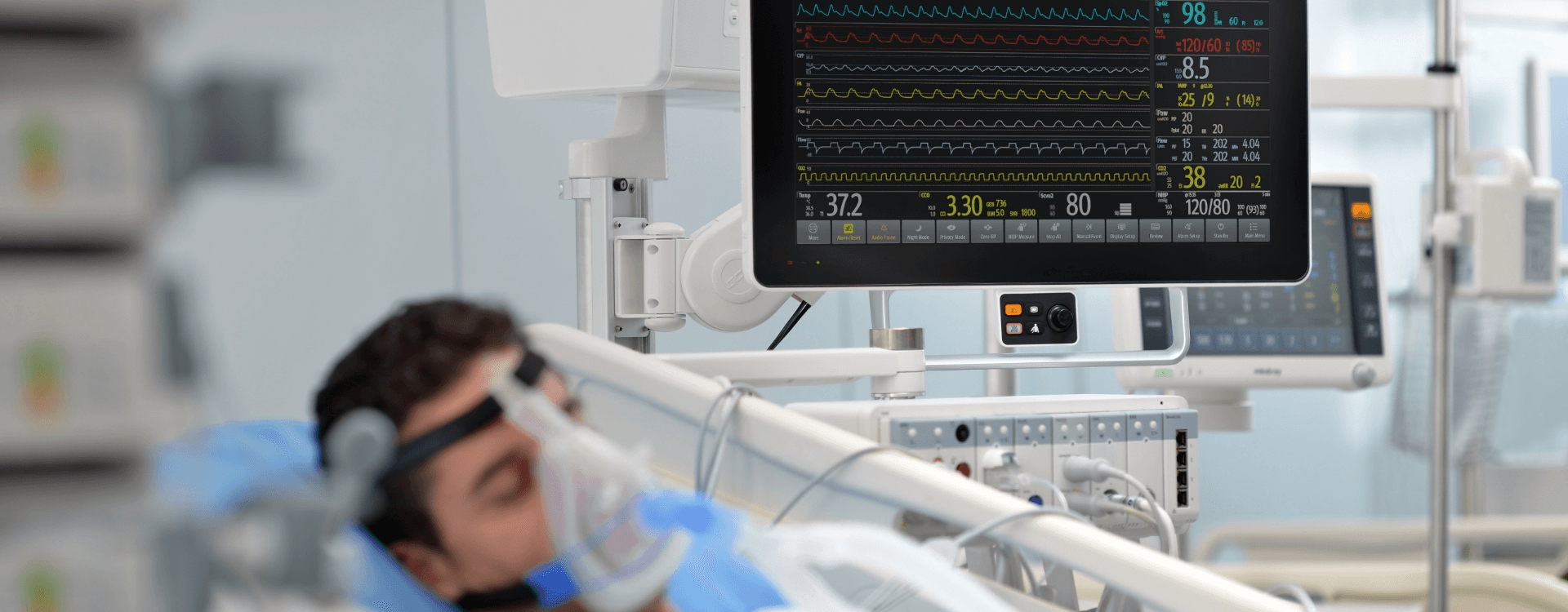

In ICUs or operating rooms, a single device simultaneously tracks complex parameters including ECG, blood oxygen, end-tidal carbon dioxide, and even brain waves.
For instance, a patient with postoperative hemorrhage requires continuous monitoring of arterial pressure; the device can directly connect to an arterial catheter to obtain precise values, with the screen divided into sections displaying waveforms and trend graphs so that healthcare personnel can grasp the overall situation at a glance.
Cardiovascular Monitor (Electrocardiograph Monitor)
Specifically designed for heart diseases, it is commonly used for patients with coronary heart disease. By using 11-lead patches to capture the heart’s electrical activity, it can not only detect atrial fibrillation but also analyze subtle ST segment elevations to warn of the risk of myocardial infarction.
Some devices support 24-hour dynamic ECG recording, allowing patients to wear a small recorder to capture occasional arrhythmias at night.
Fetal, Maternal-Fetal and Neonatal Monitor
- Fetal monitors are commonly used in obstetrics clinics to assess fetal heart rate and uterine contractions; in twin pregnancies, two probes are used simultaneously for separate monitoring.
- The maternal-fetal monitor builds on this by adding monitoring of the mother’s blood pressure and blood oxygen. This is especially critical for patients with preeclampsia, where real-time data can prevent delayed detection of emergencies such as placental abruption.
- The probe of a neonatal monitor is only about the size of a coin and made of flexible material to avoid injuring the skin, and it can also monitor transcutaneous bilirubin levels.
Veterinary Monitor
Veterinary monitors adjust parameter thresholds for animals (for example, the normal heart rate for dogs is higher than that for humans); veterinarians often rely on such devices to monitor the vital signs of animals under anesthesia, such as during surgeries on working dogs.
Scenario-Based Devices: Bedside, Emergency, Portable, and Remote Monitors

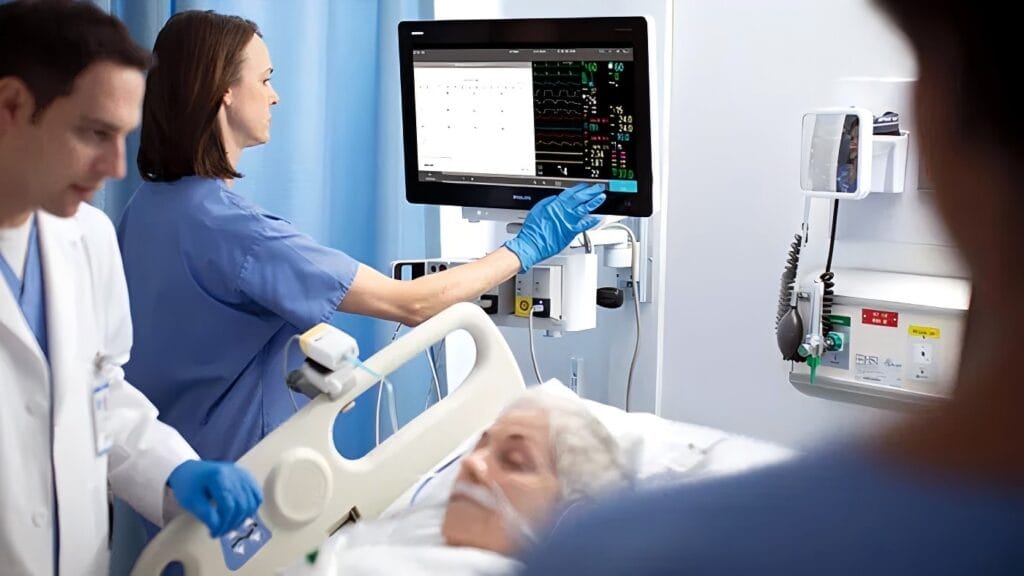

- Bedside monitors are fixed to the patient’s bed, with a large screen displaying trend curves and data simultaneously received at the nursing station;
- Emergency monitors have built-in shock-proof batteries, ensuring stable monitoring even in the bumpy conditions of an ambulance, with some models integrating defibrillation functions;
- Portable patient monitors can fit into a first aid kit, allowing for rapid screening of injured patients’ ECG and blood oxygen in disaster rescue scenarios;
- Remote patient monitoring devices upload data from home patients to the cloud via Bluetooth. If a doctor’s mobile device receives an alert indicating blood oxygen below 90%, they can immediately contact the patient for medical attention.
Note: In practical applications, the functions of these devices often overlap (for example, multi-parameter monitors can also be used as bedside monitors). The classification primarily focuses on the original design intent and core advantages.
Applications of Patient Monitors
Continuous Monitoring
Replaces manual observation by enabling uninterrupted tracking of vital signs, immediately detecting abnormal fluctuations, and establishing a 24-hour early warning system for critically ill patients.
Remote Monitoring
Overcomes geographical limitations by transmitting data, enabling home patients and those in remote areas to receive real-time medical intervention support, thereby reducing the risk of missed or delayed diagnoses.
Postoperative Monitoring
Provides precise management of key indicators during the recovery period after anesthesia and surgery (such as fluid balance and circulatory status), preventing complications and optimizing treatment plans.
Neonatal Monitoring
For premature infants and high-risk newborns, it synchronously monitors vulnerable physiological aspects such as respiration and adaptation to temperature and humidity, reducing the risk of sudden incidents due to underdeveloped organs.
Cardiac Monitoring
Accurately captures abnormalities in cardiac electrical activity—such as arrhythmias and myocardial ischemia—assisting in diagnosis and in evaluating the effectiveness of drug treatments or pacemaker implantation.
Maternal and Fetal Monitoring
Simultaneously assesses complications during pregnancy (such as preeclampsia) and the in utero status of the fetus (such as hypoxia or distress), providing objective data for determining the optimal timing of delivery.
Frequently Asked Questions
How does a patient monitoring system work?
It collects data such as heart rate and blood pressure in real time through sensors, processes the data to display numerical values or waveforms, automatically triggers alarms when abnormalities are detected, and synchronizes the data with hospital systems and mobile devices.
What are the benefits of using a patient monitoring system?
24-hour tracking of patient conditions, reducing the risk of human error.
Timely early warning of dangerous signals such as sudden cardiac arrest, aiding in rapid rescue.
Supports long-term recording to help doctors analyze trends in the patient’s condition.

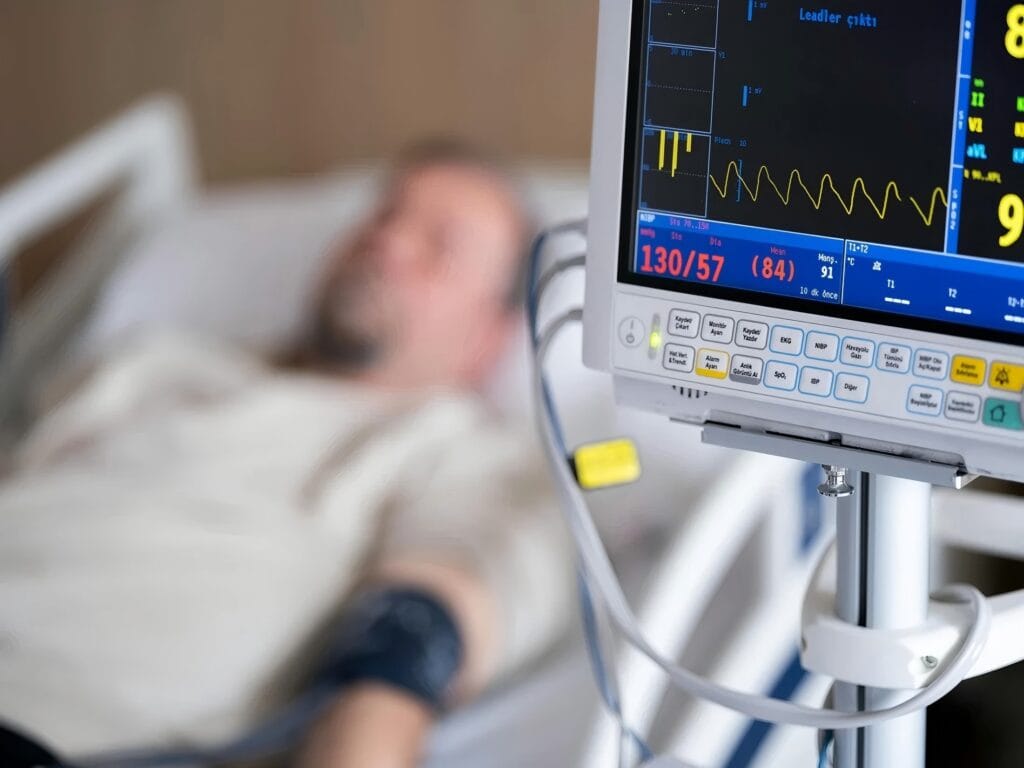

Who uses patient monitors?
ICU patients, surgical and postoperative patients, neonates, and high-risk pregnant women are monitored in real time by healthcare personnel, while some chronic disease patients may use them remotely at home.
What should be considered when choosing a patient monitoring system?
The data accuracy must meet medical certification standards, be compatible with hospital systems, have a rapid alarm response, be easy to operate and resistant to interference, and the subsequent maintenance costs should also be evaluated.
Can they be used for all patients?
In most cases they are applicable, but for certain groups—such as extremely agitated patients, those with skin damage, or premature infants—specialized devices with adjusted monitoring methods are required, and in some cases manual assistance by healthcare personnel is necessary.
