Different Types of Medical Imaging Equipment
Medical imaging is a scientific technology that uses physical or digital techniques as a “spotlight” to interact with the human body through energy such as sound, light, magnetism, and radiation, translating internal structures into visualized images. It can non-invasively present the “life script” of bones, organs, blood flow, and even cellular metabolism, providing a direct evidence chain for diagnosis and treatment.
Core categories include anatomical imaging (such as X-rays and CT scans capturing structural shapes), functional imaging (such as PET/SPECT displaying metabolic activities), and dynamic imaging (such as ultrasound real-time tracking of fetal heartbeats). With the integration of AI algorithms, it can also predict the evolution of lesions, becoming the “decoder” of modern medicine.
The Importance of Medical Imaging Equipment
Medical imaging equipment is like the “X-ray vision” of doctors, leaving no room for diseases to hide. From fracture detection to tumor tracking, from pregnancy monitoring to surgical navigation, these technologies reveal the secrets inside the body in a painless and safe manner, transitioning diagnosis from “experience-based guessing” to “precise visualization.”
In the past, diagnosis was like a guessing game—symptoms were vague and prone to misjudgment. However, modern equipment can provide conclusions in seconds: X-rays clearly show bone damage, ultrasound captures fetal dynamics in real-time, and CT scans detect small lesions. More importantly, when combined with artificial intelligence, these technologies can predict treatment outcomes, guiding surgeries to avoid dangerous areas and serving as a “navigation system” throughout the treatment process.
Statistics show that over 80% of disease diagnoses rely on imaging tests. This “seeing is believing” approach to diagnosis not only reduces the risk of misdiagnosis but also spares patients from many invasive examinations. The progress of medical imaging is not just a technological breakthrough but a gentle safeguard for life—illuminating the path to health with images.
Common Imaging Modalities
X-ray Imaging
Like taking a “fluoroscopic” image of the body, X-rays pass through the human body, and dense tissues like bones block most of the rays, appearing white on the film, while soft tissues like muscles and fat allow more radiation to pass through, appearing gray or black.
This technique is most suitable for quickly capturing fractures, lung infections , or accidentally ingested foreign objects.
Its advantages include results in seconds and affordability, but the disadvantages are evident: radiation risk (use with caution for pregnant women), and limited ability to differentiate details in soft tissues like muscles and blood vessels.
Ultrasound Imaging
This is akin to “sketching” the body with sound waves. The doctor moves a probe across the skin, and high-frequency sound waves penetrate the body, reflecting back from different tissues. The machine calculates the time difference in the echoes and creates a dynamic image, even allowing visualization of heart valve movement or fetal kicking.
Ultrasound is irreplaceable for pregnancy checks, liver and gallbladder assessments , and heart function evaluation. Its radiation-free nature makes it safe for frequent use by pregnant women and children. However, sound waves are easily blocked by gases (like intestinal bloating) or bones, leading to unclear imaging of deep organs (such as the area behind an adult heart).
CT (Computed Tomography) Scan
Imagine slicing the body into thin “slices” for observation. The CT scanner rotates around the body, emitting X-rays from hundreds of angles. The data is then processed by a computer to create cross-sectional images, which are stacked to form a 3D model.
In emergencies, CT can quickly locate the position and amount of brain hemorrhaging or detect early-stage lung cancer nodules. Its clarity far exceeds regular X-rays, especially for complex fractures and internal organ tumors. However, it comes with a high radiation dose (a chest CT scan is approximately equivalent to 100 X-rays) and can produce artifacts if there are metal implants or devices in the body.
MRI (Magnetic Resonance Imaging)
MRI uses the “magnetic dance” of hydrogen atoms in the body for imaging, without radiation. In a strong magnetic field, the hydrogen atoms in water within the body align, and radiofrequency pulses disrupt this order. The signals released when the atoms return to their original position are captured and converted into high-precision images.
MRI is especially powerful for diagnosing brain diseases, joint soft tissue damage, and spinal cord issues. It can even differentiate between benign and malignant tumors. However, the examination process is noisy and time-consuming (often taking more than 30 minutes), and it is unsuitable for people with metal implants (such as pacemakers). Additionally, it is more expensive.
Nuclear Medicine Imaging (e.g., PET)
Nuclear medicine tracks the path of radioactive tracers injected into the body, revealing the “metabolic hotspots.” Patients are injected with a small amount of radioactive material , and active cancer cells or areas of inflammation absorb these materials in large quantities, showing up as bright spots on the images.
PET is crucial for checking cancer metastasis and evaluating heart vitality. Its advantage is detecting functional abnormalities before structural changes, but it requires special equipment and high radiation doses, and interpreting results is more dependent on the clinician’s experience.
Types of Medical Imaging Equipment
Conventional Radiology Machine and DR (Digital Radiography)
High-energy electromagnetic waves penetrate body tissues. Dense structures like bones absorb more radiation, forming contrast images on film or detectors. During the exam, patients typically stand, lie flat, or lie on their sides to ensure the target area (such as the chest or limbs) is fully exposed to the X-ray beam.
Recognizing health issues across the body:
- Arthritis
- Fractures
- Pneumonia
- Dental problems
- Blocked blood vessels
- Gastrointestinal perforations
- Scoliosis
X-rays can quickly capture structural abnormalities (results in under 30 seconds) and are cost-effective, but their ability to distinguish details in muscles, ligaments, or early tumors is limited. For imaging soft tissues like breasts, a mammogram may be required to improve sensitivity.
Ultrasound Machine
Ultrasound builds real-time dynamic images based on differences in the reflection of high-frequency sound waves across tissues. Patients adjust their positions based on the area being examined (e.g., lying curled up for gallbladder checks, lying flat with the lower abdomen exposed for obstetric ultrasound, or left side-lying for cardiac ultrasound to bring the heart closer to the chest wall).
Precision in identifying multi-organ diseases:
- Gallstones
- Internal bleeding
- Heart valve disease
- Thyroid nodules
- Fetal malformations
Ultrasound has poor penetration through gases and bones (e.g., detecting lung or brain lesions), but the use of ultrasound contrast agents greatly improves the detection of liver cancer and breast cancer, while elastography technology can distinguish liver cirrhosis from fatty liver.

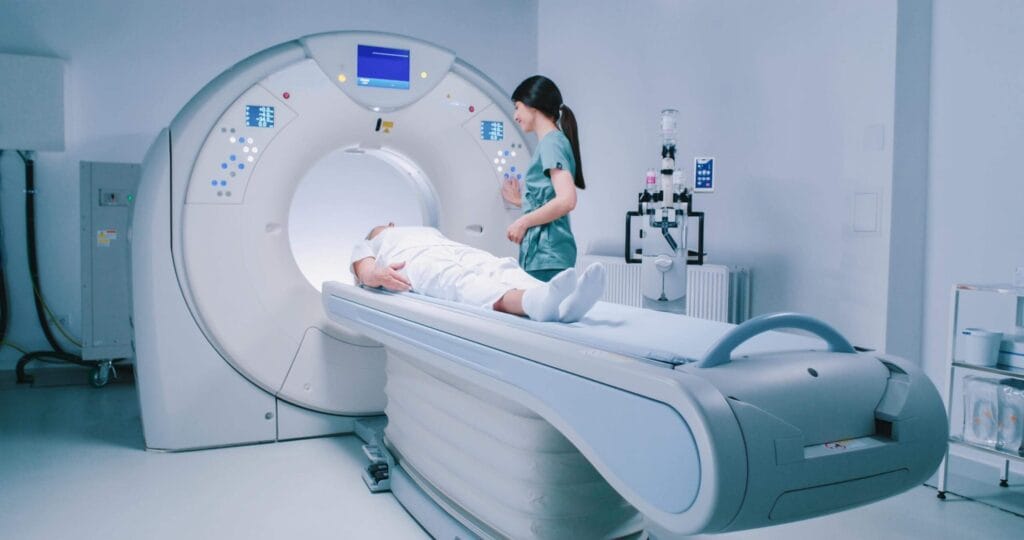

CT Scanner
Using a rotating X-ray source and a ring detector array, CT scans reconstruct cross-sectional body images from multiple angle projections. Patients lie on a moving table and follow breathing instructions (such as holding their breath for 10 seconds during lung scans).
Applications for the whole body:
- Brain hemorrhage
- Pulmonary embolism
- Tumor staging
- Aortic dissection
- Complex fractures
Diabetic patients taking metformin should stop the medication 48 hours before the scan to avoid kidney damage from contrast agents. When performing coronary CTA, the heart rate must be below 65 bpm, or vascular motion blurring will occur.
MRI (Magnetic Resonance Imaging) Machine
MRI uses a strong magnetic field and radiofrequency pulses to stimulate hydrogen atoms in the body for resonance signals. The patient must remain still inside a closed magnetic chamber, especially for brain or spinal cord examinations where even eye movements can cause artifacts.
A microscope for the nervous system and soft tissues:
- Stroke
- Spinal cord injury
- Joint cartilage tears
- Pituitary tumors
- Soft tissue tumors
The 3.0T ultra-high-field MRI can detect millimeter-level pituitary microadenomas, though metal implant artifacts remain an issue. Open magnet designs alleviate anxiety for claustrophobic patients but sacrifice some image resolution.
Nuclear Medicine Equipment (PET/SPECT)
Nuclear medicine introduces radioactive tracers into the body, where decay signals are captured by gamma cameras or PET detectors. Patients wait 1-2 hours after tracer injection for distribution (such as the accumulation of fluorodeoxyglucose at tumor sites) and must remain still to avoid image blurring.
Visualizing metabolic activity:
- Bone metastases in cancer
- Myocardial ischemia
- Hyperthyroidism
- Lymphoma metabolism assessment
PET-MRI fusion technology improves soft tissue contrast and metabolic information, but the exam duration can last up to 2 hours, requiring careful monitoring of radiation dosage to avoid overdose.
Considerations When Purchasing Diagnostic Imaging Equipment
Begin by setting a clear budget, evaluating both equipment acquisition costs and future maintenance, upgrades, and energy consumption. Space planning is equally critical to ensure that the facility meets installation standardsand accommodates patient flow, avoiding later costly renovations.
Clinical needs should take precedence over technical gimmicks. Community clinics may require simple, multifunctional ultrasound equipment, while large hospitals need precise imaging for complex cases (e.g., tumor localization or neurosurgical procedures). Before purchasing, confirm the types and frequencies of exams with the clinical team to avoid underutilization or overuse of equipment.
Vendor selection should balance technological innovation with reliability, favoring brands with broad after-sales service networks and fast spare parts supply, especially since emergency repair response time can impact patient care.
Training for medical staff is often underestimated. Some equipment (like interventional radiology systems) requires system certification training for operators, which should be planned well in advance. Regarding regulatory compliance, it’s essential to understand local certification requirements for radiology equipment, electromagnetic safety, and data privacy.
Ensure compatibility of consumables to avoid hidden costs from locking into a single supplier. Some imaging devices depend on proprietary reagents or software, which could increase costs over time. It’s also essential to consider future-proofing, such as choosing digital equipment that can be remotely upgraded to avoid having to replace hardware soon due to technological advancements.
Ultimately, procurement decisions should be based on the institution’s ability to serve patients, financial burden, and operational efficiency, rather than simply comparing equipment specifications.
